Product introduction
5A molecular sieve is a chemical substance with the molecular formula of 3/4CaO-1/4Na2O-Al2O3-2SiO2-9/2H2O.
Silicon to aluminum ratio:SiO2/AI2O3≈2,
effective pore size:about 5Å

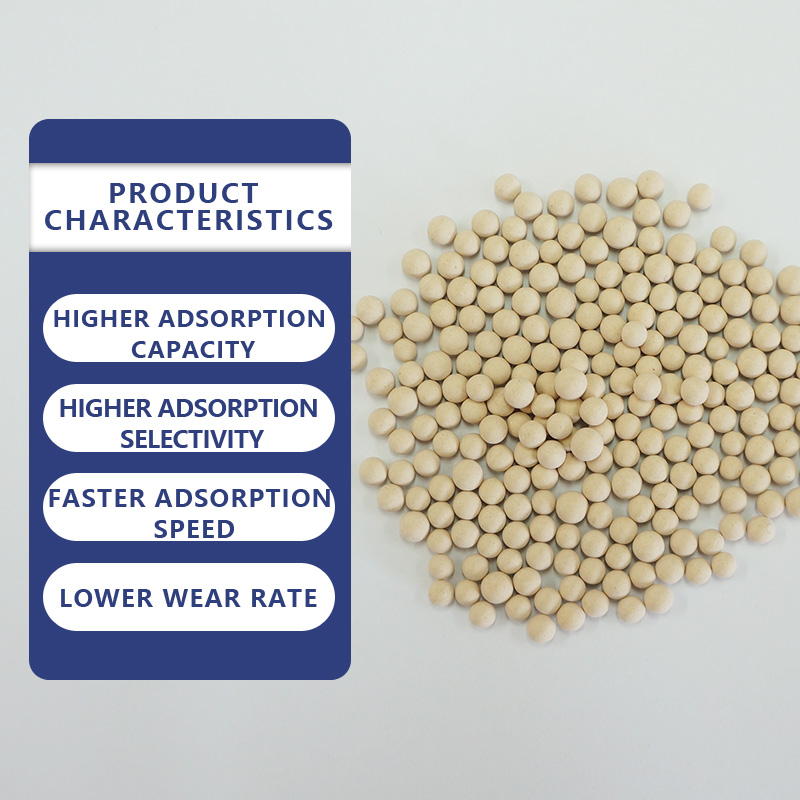

Product characteristics
5A molecular sieve has a well-developed three-dimensional pore structure, and the pore diameter of the crystal is 0.5nm mainly used in (PSA) variable pressure adsorption H₂, CO and O₂ production devices and large-scale n-isomeric alkane separation devices in petrochemical enterprises and other industrial fields.
1、Higher adsorption capacity, larger specific surface area and pore capacity, faster adsorption speed.
2、Stronger adsorption selectivity ensures greater separation coefficient between components and more complete desorption at room temperature.
3、Smooth and hard surface, high strength and low abrasion rate ensure no powder fall under high strength airflow.
Parameters
5A | Items | Unit | Index | Index |
Drain size | mm | 1.7-2.5 | 2.0-3.0 |
Static water adsorption （RH75%,25℃）% | ≥%wt | 23 | 23 | 23 | 23 |
Static N₂ adsorption （25℃，760mmHg） | ≥ml/g | 10 | 10 | 11 | 11 |
Static CO adsorption （25℃，760mmHg） | ≥ml/g | 30 | 30 | 30 | 30 |
CH4adsorption | ≥ml/g | 16 | 16 | 16 | 16 |
Crushing strength | ≥N | 30 | 30 | 40 | 40 |
Buck density | g/ml | 0.74±0.02 | 0.74±0.02 | 0.74±0.02 | 0.74±0.02 |
Attrition rate | ≤% | 0.30 | 0.30 | 0.30 | 0.30 |
Particle qualification | ≥% | 98 | 98 | 98 | 98 |

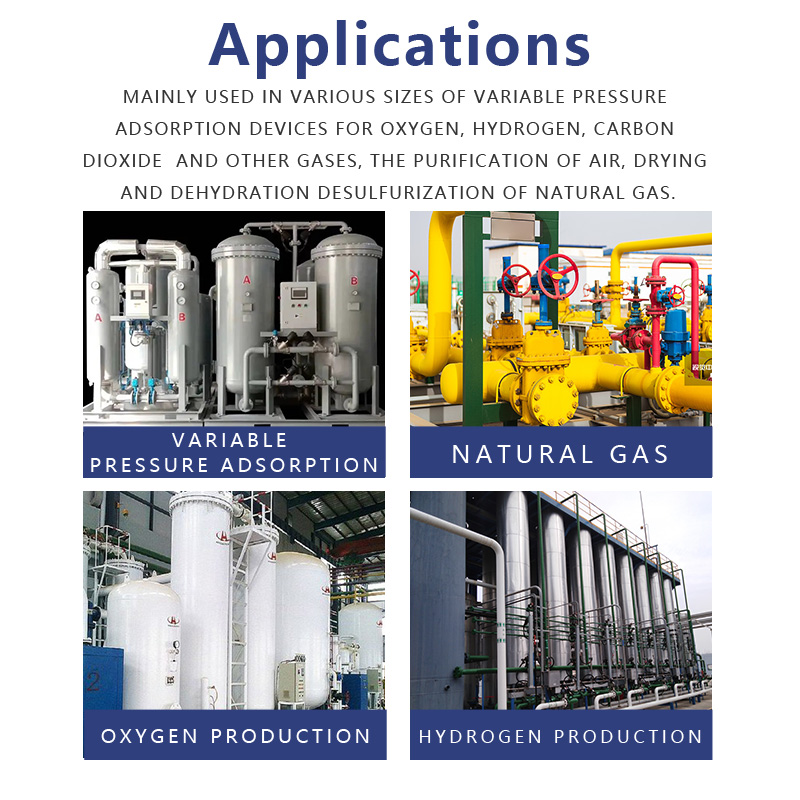

Typical applications
1.Conversion gas or hydrogen reforming
2.Methanol cracking gas or methanol choke gas
3.Ammonia tail gas
4.Coke oven gas, barren gas, water gas
5.Refinery hydrogenation low fraction gas
6.Catalytic dry gas
The purity of hydrogen production is usually increased to 99.9+%, and the hydrogen recovery rate is 60% ~ 90%.
Feed hydrogen concentration > 55% is considered economical and reasonable
If the feed hydrogen content is between 40% and 50%, it can be economically upgraded according to the site specific requirements
If the feed hydrogen content is below 40%, it is difficult to achieve economic rationality
Packing
25KG carton, lined with PP sealed bag
235L sealed steel drum(net weight:150kg )
Lined with sealed polypropylene container bag (600KG or 750KG)
Storage
Store in a ventilated and dry warehouse. Pay attention to moisture and prevent rain when transporting. Avoid adsorption of water and organic matter before use, otherwise it should be regenerated.
Measuring unit kg Product unit price
Minimum order quantity 1kg
Total supply 10000
Delivery period Delivery within 5 days from the date of payment
